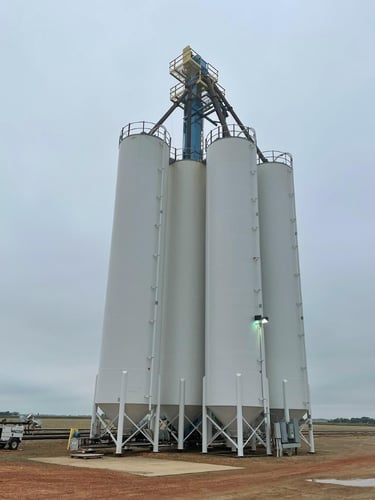

Silo storage system, estimated volume 38,100 cubic feet total
Location: North Dakota, United States
Asking price: contact us for the price.
Item details
One (1) used silo storage system with:
- One (1) used railcar unloading conveyor to the bucket elevator,
- One (1) used bucket elevator to the silos,
- Six (6) used CST Storage carbon steel welded tanks, size 11-foot-11-inch diameter by 65-foot-1 7/16-inch tall with
- Design data:
- Product frac sand,
- Product compacted bulk density 100 pounds per cubic foot,
- Estimated volume of 6,350 cubic feet each or 38,100 cubic feet total at a 25-degree angle of repose,
- Flow pattern funnel flow,
- Center fill, center discharge,
- Grind requirements CST standard – smooth not flush,
- Design pressure positive 14.00 positive ounces per square inch,
- Design pressure negative 1.00 negative ounce per square inch,
- Maximum operating pressure positive 2.00 positive ounces per square inch,
- Maximum operating pressure negative 0.50 negative ounces per square inch,
- Deck live load 26 pounds per square foot,
- Wind load per ASCE 7-05 90 miles per hour Exp. C I=1.0
- Seismic per IBC 2009 SS=13.5% S1=3.1%
- Group 1 Class D R=3 Cat A I=1.00 V=0.036W
- Features:
- Six (6) used fill line kit assemblies, 4-inch schedule 80 pipe with stainless steel quickie line adapters and dust caps,
- One (1) used ladder assembly,
- Six (6) used tank guardrails with posts and toeboards,
- Five (5) used crossover assemblies,
- Six (6) used center dome necks, size 20-inch diameter,
- Six (6) used manway/pressure relive valve assemblies, size 20-inch diameter,
- Unknown (unknown) used level indicator openings,
- Six (6) used leg assemblies/baseplates,
- Six (6) used slide gates, and
- One (1) used unloading conveyor under four (4) of the silos next to the bucket elevator.
Note:
Status: available
Terms: as is where is
Location: North Dakota, United States
Asking price: contact us for the price.
